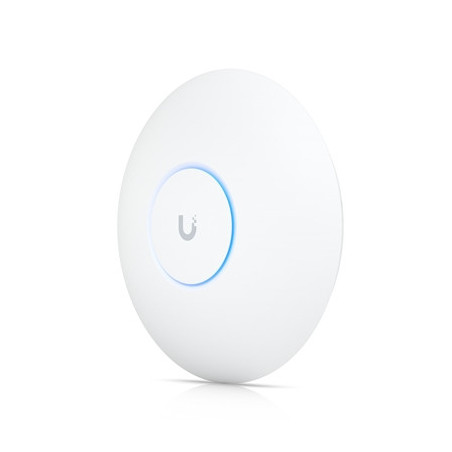

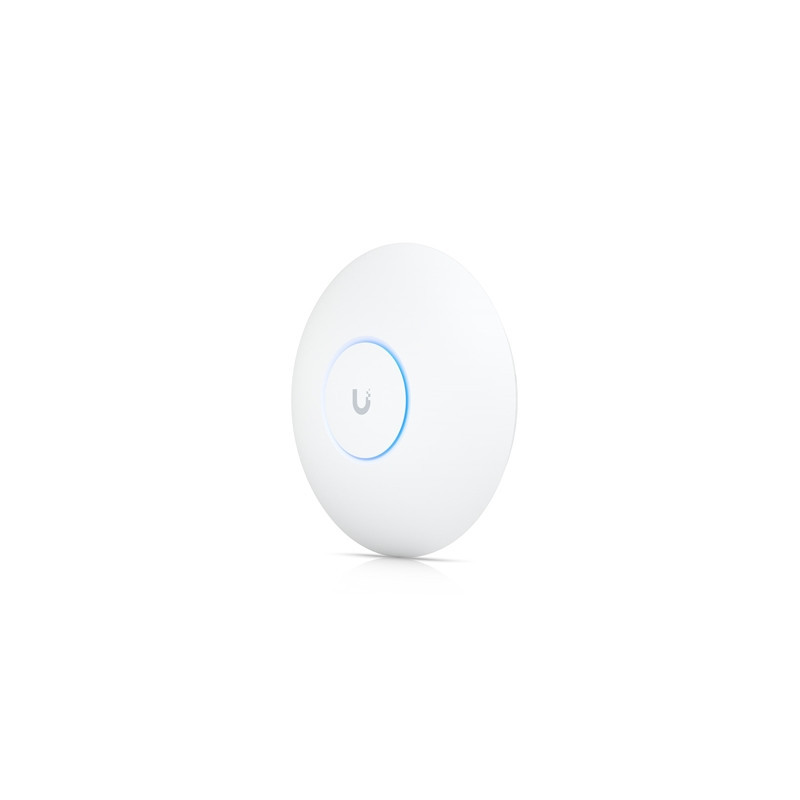

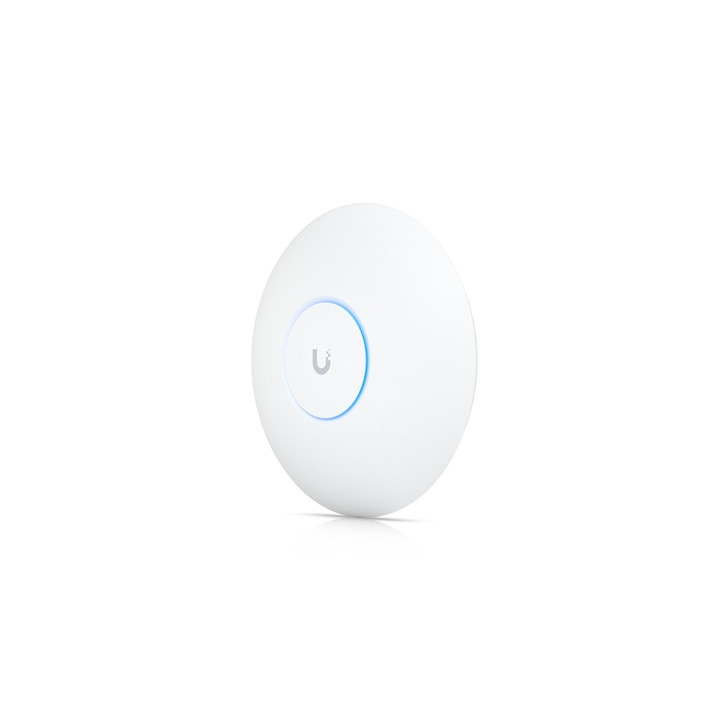

Ubiquiti UniFi U7 Pro WiFi 7 Access Point with 6 GHz Support 140 m (1 500 ft) coverage 300+ connected devices Powered using PoE+ 2.5 GbE uplink

Ubiquiti UniFi U7 Pro WiFi 7 Access Point
The UniFi U7-Pro is a Ceiling-mount WiFi 7 AP with 6 GHz support 2.5 GbE uplink and 9.3 Gbps over-the-air speed.

Key Features
WiFi 7 with 6 GHz support
140 m² (1 500 ft²) coverage
300+ connected devices
Powered using PoE+
2.5 GbE uplink
The Ubiquiti UniFi U7 Pro WiFi 7 Access Point is a ceiling-mounted device designed for large-scale demanding environments. It supports WiFi 7 with a tri-radio system including 6 GHz for reduced interference.

The UniFi U7 Pro offers 6 spatial streams which handle over 300 connected devices. The U7 Pro features a 2.5 GbE uplink and offers advanced throughput rates and antenna gains across different frequency bands. It's built with robust hardware and software ensuring high performance and security standards.

Specifications

Mechanical

Weight & Dimensions
206 x 46 mm (8.1 x 1.8)
Weight 680 g (1.5 lb)

Enclosure materials
Polycarbonate metal

Mount material
Mounting bracket: stainless steel (SUS304)
Backing plate: galvanized steel (SGCC)

Hardware

Networking interface
(1) 1/2.5 GbE RJ45 port

Management interface
thernet

Power method
PoE+

Power supply
UniFi PoE switch

Supported voltage range
44—57V DC

Max. power consumption
21W

Max. TX power
2.4 GHz - 22 dBm
5 GHz - 26 dBm
6 GHz - 23 dBm

MIMO
2.4 GHz - 2 x 2
5 GHz - 2 x 2
6 GHz - 2 x 2

Throughput rate
2.4 GHz - 688 Mbps
5 GHz - 2882 Mbps
6 GHz - 5765 Mbps

Antenna gain
2.4 GHz - 4 dBi
5 GHz - 6 Dbi
6 GHz - 5.8 dBi

LEDs
White/blue

Button
Factory reset

Mounting
Wall/ceiling (Included)

Operating temperature
-30 to 60° C (-22 to 140° F)

Operating humidity
5 to 95% noncondensing

Certifications
CE FCC IC

Software

WiFi standards
802.11a/b/g/n/ac/ax/be

Wireless security
WPA-PSK WPA-Enterprise (WPA/WPA2/WPA3/PPSK)

BSSID
8 per radio

VLAN
802.1Q

Advanced QoS
Per-user rate limiting

Guest traffic isolation
Supported

Concurrent clients
300+

Supported Data Rates

802.11a
6 9 12 18 24 36 48 54 Mbps

802.11b
1 2 5.5 11 Mbps

802.11g
6 9 12 18 24 36 48 54 Mbps

802.11n
6.5 Mbps to 300 Mbps (MCS0 - MCS15 HT 20/40)

802.11ac (WiFi 5)
6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2 VHT 20/40/80/160)

802.11ax (WiFi 6)
7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2 HE 20/40/80/160)

802.11be (WiFi 7)
7.3 Mbps to 5.7 Gbps (MCS0 - MCS13 NSS1/2 EHT 20/40/80/160/240/320)

Application Requirements

UniFi Network
Version 8.0.7 and later

UniFi OS
Version 3.2 and later
