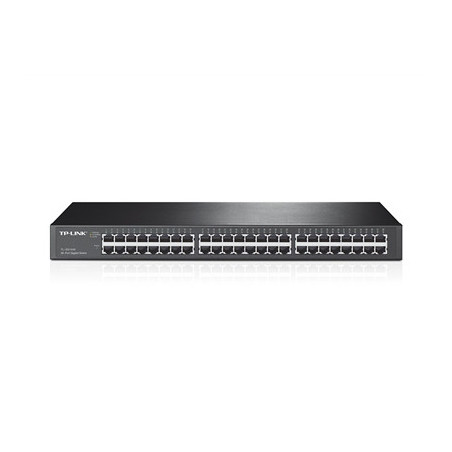

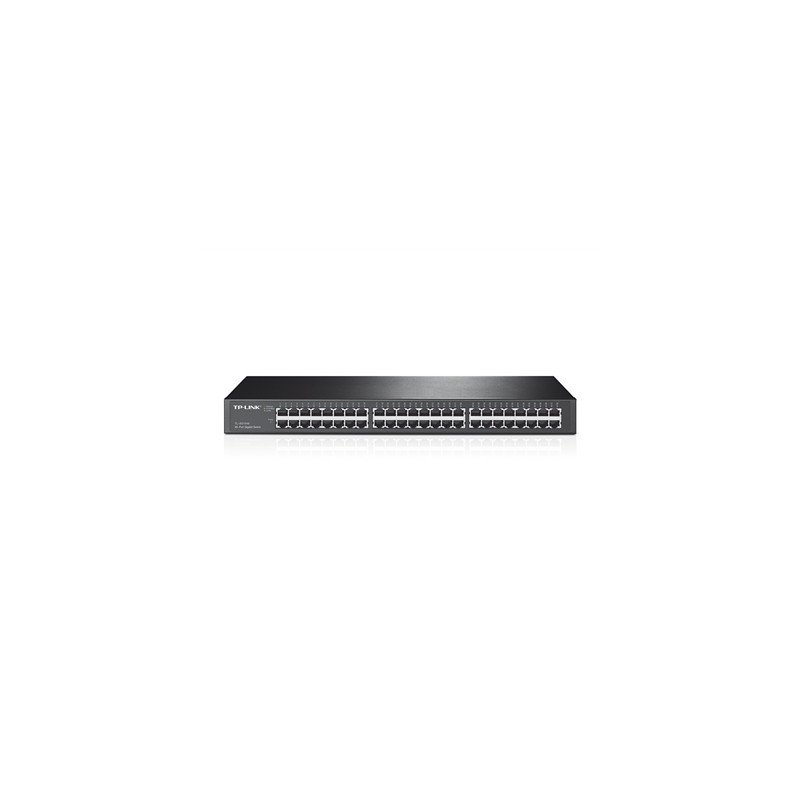

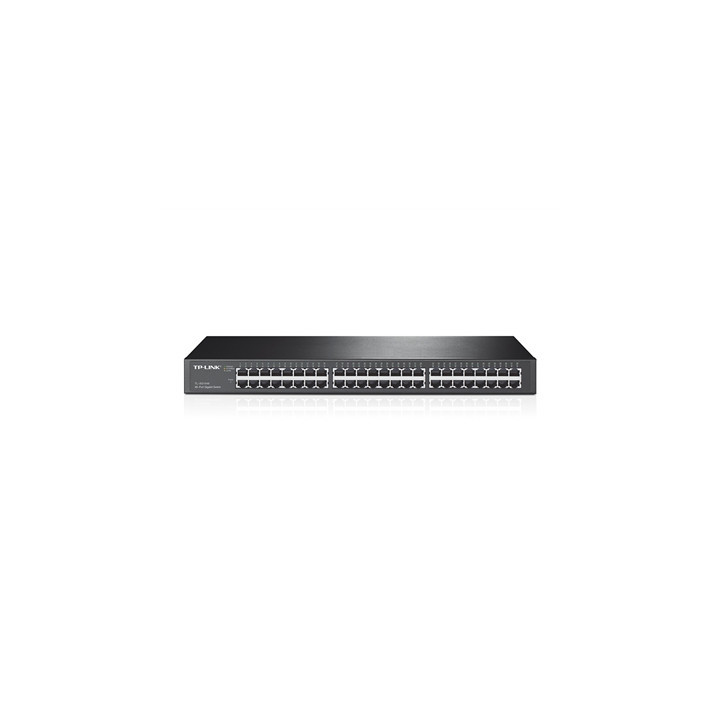

TP-Link TL-SG1048 48-Port Metal Gigabit Rackmount Network Switch

Key Features
48 10/100/1000Mbps RJ45 ports
Innovative energy-efficient technology saves power up to 18%
Supports MAC address self-learning and auto MDI/MDIX
Standard 19-inch rack-mountable steel case

Specifications

HARDWARE FEATURES

Standards and Protocols
IEEE 802.3i IEEE 802.3u IEEE 802.3ab IEEE 802.3x

Interface
48 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)

Network Media
10BASE-T: UTP category 3 4 5 cable (maximum 100m)
100BASE-TX/1000BASE-T: UTP category 5 5e or above cable (maximum 100m)

Physical Security Lock
No

Power Supply
100-240VAC 50/60Hz

Dimensions ( W x D x H )
17.32*8.7*1.73 in.(440*220*44 mm)

Mounting
Rack Mountable

Max Power Consumption
32.29W(220V/50Hz)

Max Heat Dissipation
110.17BTU/h

PERFORMANCE

Switching Capacity
96Gbps

Packet Forwarding Rate
71.4Mpps

MAC Address Table
16K

Buffer Memory
12Mb

Jumbo Frame
12KB

Transfer Method
Store-and-Forward

OTHERS

Certification
FCC CE RoHS

Package Contents
48-Port Gigabit Rackmount Switch
Power Cord
Installation Guide
Rackmount Kits
Rubber Feet

Environment
Operating Temperature: 0 - 40
Storage Temperature: -40 - 70
Operating Humidity: 10% - 90% non-condensing;
Storage Humidity: 5% - 90% non-condensing
